5024-HD Flexible Material Softness Tester for Packaging Testing

Name: 5024HD Flexible Material Softness Tester for Packaging Testing
Brand: Haida
Price: 1 USD

Wholesale 5024-HD Flexible Material Softness Tester for Packaging Testing from china suppliers

Brand Name : Haida

Model Number : 5024-HD

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Design Standards : ASTM D646, JIS P8124, QB / T 1671

Operating Method : Microcomputer Control

Minimum Readout : 0.1

Dropping Deviation : ±10mm

Load Resolution : 1/250,000

Testing Standards : ISO, ASTM, TAPPI

Drop Test : Corners, edges , faces of sample

Rated Bending Angle : ± 7.5 ° and ± 15 °

Usage : Packaging Testing

Plywood Size : H48in * D48in

Compressed Air : 6 kg/cm2

Test Load Options : 55g, 175g, 275g

Drive Mode : power-driven

Load Cell Resolution : 1/250,000

Contact Now

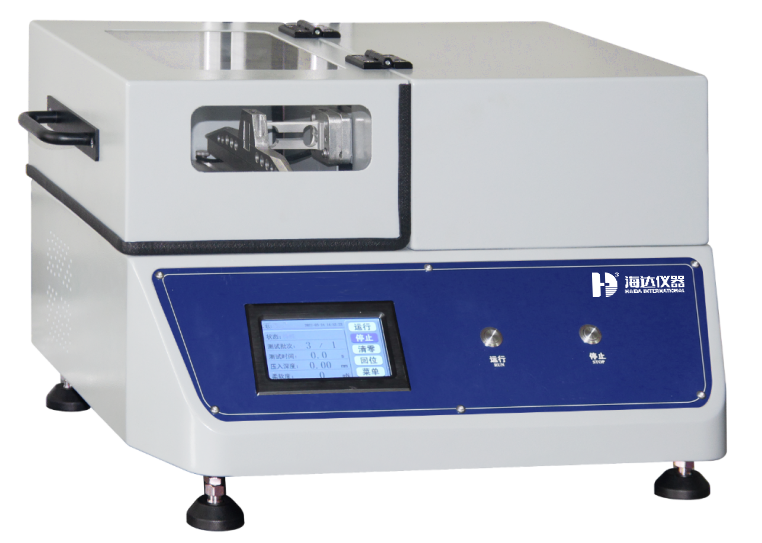

EQUIPMENT DETAILS OF 5024-HD FLEXIBLE MATERIAL SOFTNESS TESTER

5024-HD Flexible Material Softness Tester for Packaging Testing

PRODUCT DESCRIPTION

The softness tester is a test instrument that simulates the softness of the hand. It is suitable for the softness test of various high, medium and low-grade toilet papers, fiber fabrics and other sheet-like flexible materials.

TEST STANDARD

GB/T8942, QB/T1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3...

PRODUCT FEATURES

The instrument measurement and control system uses micro sensors and automatic sensing as the core digital circuit technology. It has the advantages of advanced technology, complete functions, simple and convenient operation, and is an ideal instrument for papermaking, scientific research units and commodity inspection departments;
The instrument has the functions of measuring, adjusting, displaying, printing and data processing of various parameters included in the standard;
Color touch screen display and control, Chinese and English interface, menu-based operation mode;
Built-in thermal printer, can quickly print test data.

TECHNICAL PARAMETERS

Item	Description
Measuring range	0mN～1000mN
Accuracy	±1%
LCD display	4-digit direct reading
Print result	4 significant digits
Resolution	1mN
Travel speed	(0.5-3)±0.24mm/s
Total stroke	12±0.5mm
Insert depth	8±0.5mm
Displacement accuracy	0.1mm
Power supply voltage	220V±10%
Weight	20kg
Dimensions	500 x 300 x 300mm(LxWxH)
